Re: Fe501 rally build
« Reactie #120 Gepost op: 06-08-2021, 18:47 »
I made it slightly smaller with the idea that it should not be too obvious.

I'm curious to see if my policeman for a neighbor is going to notice.

That being said, I use my 501 mostly offroad and for the most part, by travelling in other countries. So will see.


Sent from my IN2013 using Tapatalk


Offline member

  • *****
  • Berichten: 1781
Re: Fe501 rally build
« Reactie #121 Gepost op: 07-08-2021, 01:08 »
Buiten Nederland snappen ze er toch niks van.....
Als je aangehouden wordt, en het nummer van je kentekenplaat komen overeen met de "papieren" (plastic kaartje)........is het (vaak) goed.


De keren dat ik aangehouden werdt in het buitenland, verbaasden zich er over dat "dit bij ons mocht"


dwz spiegels en lampen zonder E-keur enz enz
KTM 690 Enduro '16, (KTM 690 Enduro '14 RIP) KTM 690 SMC '09, Maico 500 '87, 2 x BMW R90/s '74, BMW R75/6 '75   en nog heel veel half afgebouwde projecten.....

Offline member

  • *****
  • Berichten: 6407
  • Rustig rijden en genieten
Re: Fe501 rally build
« Reactie #122 Gepost op: 07-08-2021, 01:43 »
Ze pakken je niet op je plaatje.
Hooguit op de plaats waar jij je bevindt.
Of dat je niet stopt bij een stopbord.
Dat is heilig in het buitenland.
Gewoon stopbord ff voetje aan de grond.
En er is niks aan het handje.


Offline member

  • Member
  • *
  • Berichten: 92
Re: Fe501 rally build
« Reactie #123 Gepost op: 26-08-2021, 23:02 »

Smaller numberplate fitted.



Still not the same size as what I used to have in ZA but definitely smaller than stock plate.


Here is a 990 for reference:

Offline member

  • *****
  • Berichten: 218
Re: Fe501 rally build
« Reactie #124 Gepost op: 27-08-2021, 15:16 »
mooi

Offline member

  • Member
  • *
  • Berichten: 92
Re: Fe501 rally build
« Reactie #125 Gepost op: 21-11-2021, 15:34 »

Got the forks back from Van Laar.
They sure feel plusher than before.


The springs were the correct ratios but the shims or cone valve was apparently changed to match my description of needs.
He also gave me a printout of shock and fork settings for sand and hard pack.




Post Merge: 21-11-2021, 15:35


I was never truly happy with the white colored design.


Decided to go with back plastics




.. a sticker kit





and a pipe  > :D






Post Merge: 21-11-2021, 15:36


was nice working on my bike again. Feels like I need to get another 450 project to keep me busy


Fitting the new plastics was a bit of a mission. The fender came out of the packaging all twisted skew   ::)


Bling-o meister





Post Merge: 21-11-2021, 15:36


After fitting the quiet insert, I'm quite happy with the pipe   ;)





Lifting the front in 5th gear at 80km/h is no issue

Post Merge: 21-11-2021, 15:37


Not the best photos but I'm very happy with the result





Found some handguards on special.

I think I might still prefer the looks of the stock ones with the added 3D parts and mirrors, but I did find that my mirrors vibrated quite badly and adversely effecting its visibility.



These have the Husky blue plastic inserts which fits in nicely with the new graphics and I have some back shields on backorder to replace the white sections.


The biggest bonus is that I can now tilt the controls down, to fit my long arms better




Post Merge: 21-11-2021, 15:38


Doubletake mirrors from amazon



They show no vibration, so thats a plus too


Post Merge: 21-11-2021, 15:39


Found a nice 48mm brake line 3D model on the net.
It has a cable-tie running through the middle which allows for a nice tight fit to the forks:







Peeking inside the tank while the bike was idling, I observed some air bubbles.. apparently that is partly caused by the 52psi pressure regulator but i decided to fashion up a pressure gauge to test the FI system





Seeing as I replaced the stock quick disconnects with metal variants, I could re-use the stockers for this purpose ;)


Turns out the pump manages 3bar. Which is below the 3.5bar minimum.
Lower pump pressure will result in a lean condition and in combo with the new exhaust, I suspect it was not very happy


I was erm-ing and ah-ing about what to do with this and decided to just go for the all balls pump rebuild kit:

Out with the pump






While I'm in here, I also increased the inlet holes, at the bottom of the pump housing. The stock holes are very tiny:

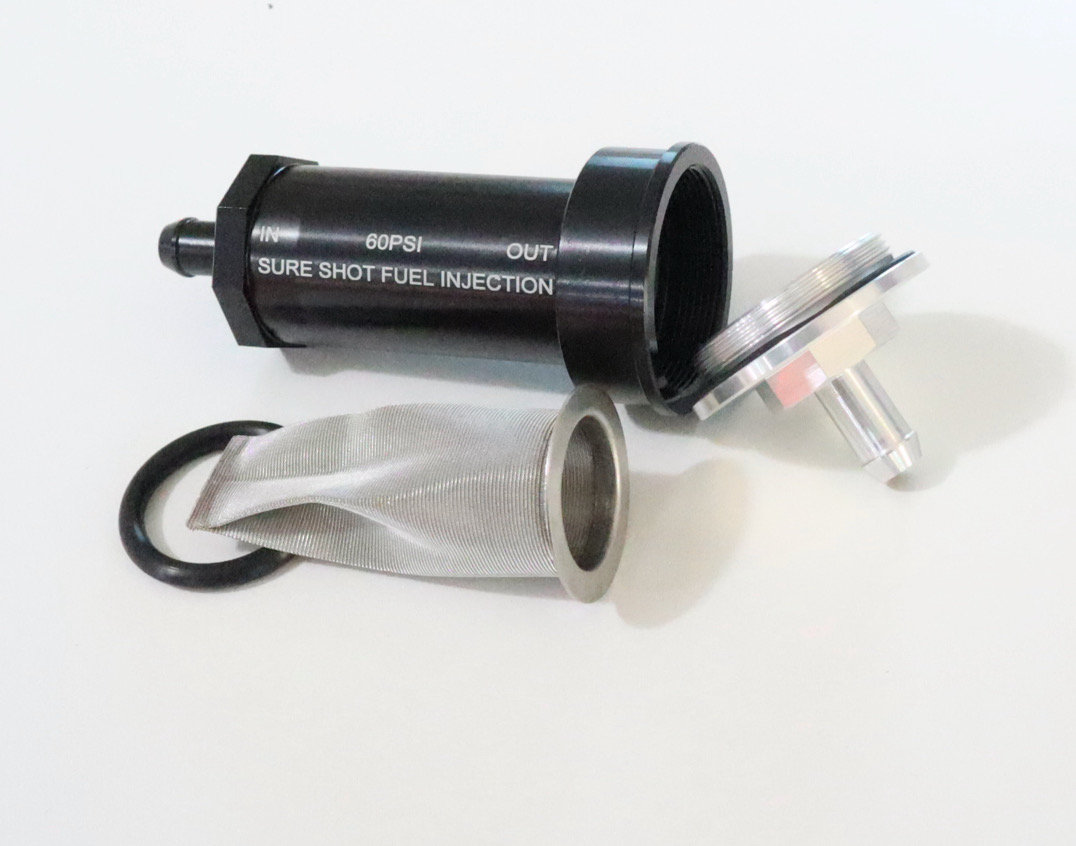

This does not include the Mahle K97 pre-filter and the current filter has over 50hours on it, filtering fuel from 4 different countries. It does look quite back  :o



This is now on order from the states and who knows how long I will have to wait for it, but its a life-long item and filters at 35microns (stock is 40)




Nice ear clamp tool:



Makes for neat fittings   8)




Its been 50hrs since I last checked the valve clearances.
All still nicely in spec


How neat is this frame under the tank?   ;)
